Safety Belt

Description

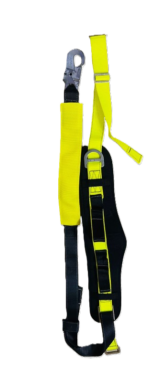

A safety belt

in the context of fall protection often refers to a body belt, which is primarily used for work positioning or fall restraint, but generally not for fall arrest. More:

This distinction

is critical for safety.

Here’s a breakdown of safety belts and their role in fall protection:

1. Body Belts (Safety Belt)

• Purpose: Body belt is designed to provide support and stability, allowing a worker to be positioned on an elevated surface (like a wall or pole) and work with both hands free. They can also be used for fall restraint, which prevents a worker from reaching a fall hazard.
• Limitations for Fall Arrest: OSHA (Occupational Safety and Health Administration) and other safety organizations generally prohibit the use of body belts as the sole component of a personal fall arrest system. This is because:
  • Force Concentration: In a fall arrest scenario, a body belt concentrates the entire impact force around the wearer’s abdomen, which can lead to severe internal injuries, spinal damage, or even death.
  • Risk of Slipping Out: A worker could potentially slip out of a body belt during a fall.
  • Suspension Trauma: If a worker remains suspended in a body belt after a fall, the restricted blood flow to the legs can cause suspension trauma, leading to loss of consciousness or death.
• Permitted Use: Body belts are typically allowed for:
  • Work Positioning Systems: Where a worker is supported on an elevated surface and the system limits any free fall to 2 feet or less.
  • Fall Restraint Systems: Where the system prevents the worker from reaching an edge from which they could fall.

2. Full Body Harnesses

• Preferred for Fall Arrest: For fall arrest, a full body harness is the required and safest option.
• Design: A full body harness distributes the forces of a fall evenly across the shoulders, chest, hips, and thighs, significantly reducing the risk of injury compared to a body belt.
• Components of a Fall Arrest System: A complete personal fall arrest system (PFAS) consists of:
  • Anchorage: A secure point capable of supporting the anticipated load.
  • Connectors: Devices like lanyards (often shock-absorbing), self-retracting lifelines (SRLs), or rope grabs that connect the harness to the anchorage.
  • Full Body Harness: The personal protective equipment worn by the worker.

Key Standards and Regulations of safety belt:

• OSHA: OSHA regulations (e.g., 29 CFR 1926.502(d) for construction, 1910.140 for general industry) specify the requirements for personal fall protection systems, emphasizing the use of full body harnesses for fall arrest. They outline maximum free fall distances and impact forces.
• ANSI (American National Standards Institute): ANSI standards (e.g., ANSI Z359 series) provide detailed performance requirements for fall protection equipment, including harnesses, lanyards, and anchorages.
• EN Standards (Europe): European standards like EN361 (full body harnesses), EN355 (energy absorbers), and EN358 (work positioning and restraint belts) also govern the design and use of fall protection equipment.

Important Considerations for Safety Belt:

• Hierarchy of Controls: The best approach to fall protection follows a hierarchy:
  1. Elimination: Remove the fall hazard entirely.
  2. Prevention (Collective): Use guardrails, safety nets, or other systems that protect multiple workers.
  3. Prevention (Personal): Use work restraint systems to prevent access to fall hazards.
  4. Fall Arrest: Use a personal fall arrest system (full body harness, lanyard, anchorage) as a last resort to safely stop a fall if it occurs.
• Inspection and Maintenance of safety belt: All fall protection equipment, including harnesses and connecting devices, must be inspected before each use by the wearer and regularly by a “competent person.” Any damaged equipment must be immediately removed from service.
• Training: Workers who use fall protection equipment must receive comprehensive training on its proper selection, use, inspection, and limitations.
• Rescue Plan: A rapid rescue plan must always be in place when workers are using fall arrest systems, as prolonged suspension after a fall can lead to suspension trauma.
